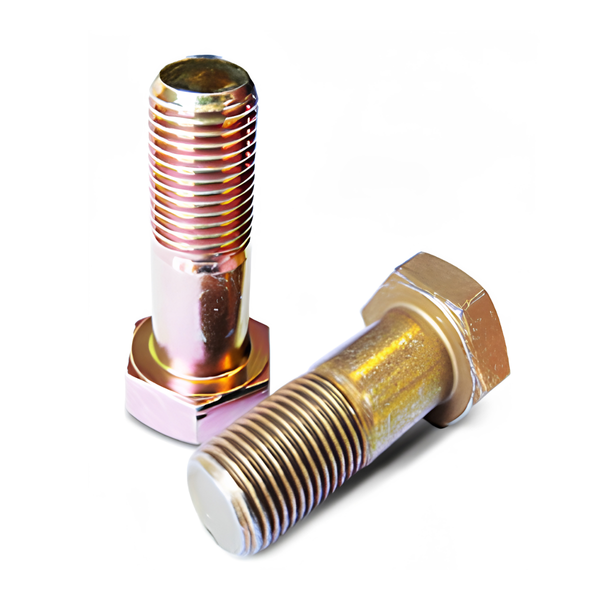

These AN3 bolts are high‑strength, aviation‑grade fasteners manufactured from heat‑treated alloy steel and finished with a cadmium plating for superior corrosion protection. Each bolt is precision‑ground for accuracy and delivers a minimum tensile strength of 125,000 PSI, making it suitable for structural and control‑system applications.
This variant features a undrilled shank. Bolt length is measured from under the head to the end of the shank, with the unthreaded portion referred to as the grip length.
AN‑series bolts meet established military and aviation specifications and are widely used across certified and experimental aircraft.
Available Dash Numbers:
AN3‑3A, AN3‑4A, AN3‑5A, AN3‑6A, AN3‑7A, AN3‑10A, AN3‑11A, AN3‑12A, AN3‑13A, AN3‑14A, AN3‑15A, AN3‑16A, AN3‑17A, AN3‑20A, AN3‑21A, AN3‑22A, AN3‑23A, AN3‑24A, AN3‑25A, AN3‑26A, AN3‑27A, AN3‑30A, AN3‑31A, AN3‑32A, AN3‑33A, AN3‑34A, AN3‑35A, AN3‑36A, AN3‑37A, AN3‑40A, AN3‑41A, AN3‑42A, AN3‑43A, AN3‑44A, AN3‑45A, AN3‑46A, AN3‑47A, AN3‑50A, AN3‑51A, AN3‑52A, AN3‑54A, AN3‑55A, AN3‑56A, AN3‑57A, AN3‑60A, AN3‑62A.
AN3 Bolt Dash Numbers Looking for a specific dash number such as AN3‑4A, AN3‑5A, AN3‑6A, AN3‑7A or any other AN3 undrilled variant? See the full AN3 Bolt Dash Number Guide for lengths from AN3‑3A to AN3‑60A. View the guide
Pilot Shop Ltd is authorised by the Civil Aviation Authority of New Zealand to supply aircraft parts and aircraft fluids. Our CAA number is SUP104208NZ.
Download our CAA Part 19F Certificate.
Quick order
| Dash Number | Price | Availability | Qty | Add to cart |
|---|---|---|---|---|
| 3AN3-3A | $0.74 | Special order – 3–6 weeks | ||
| 4AN3-4A | $0.58 | Out of stock | ||
| 5AN3-5A | $0.83 | Special order – 3–6 weeks | ||
| 6AN3-6A | $0.71 | 5 in stock | ||
| 7AN3-7A | $0.81 | Special order – 3–6 weeks | ||
| 10AN3-10A | $1.63 | Special order – 3–6 weeks | ||
| 11AN3-11A | $1.24 | Special order – 3–6 weeks | ||
| 12AN3-12A | $0.90 | Special order – 3–6 weeks | ||
| 13AN3-13A | $1.27 | Special order – 3–6 weeks | ||
| 14AN3-14A | $0.92 | Special order – 3–6 weeks | ||
| 15AN3-15A | $4.14 | Special order – 3–6 weeks | ||
| 16AN3-16A | $1.38 | Special order – 3–6 weeks | ||
| 17AN3-17A | $1.82 | Special order – 3–6 weeks | ||
| 20AN3-20A | $2.02 | Special order – 3–6 weeks | ||
| 21AN3-21A | $1.52 | Special order – 3–6 weeks | ||
| 22AN3-22A | $1.38 | Special order – 3–6 weeks | ||
| 23AN3-23A | $1.33 | Special order – 3–6 weeks | ||
| 24AN3-24A | $1.61 | Special order – 3–6 weeks | ||
| 25AN3-25A | $1.84 | Special order – 3–6 weeks | ||
| 26AN3-26A | $1.82 | Special order – 3–6 weeks | ||
| 27AN3-27A | $2.74 | Special order – 3–6 weeks | ||
| 30AN3-30A | $2.53 | Special order – 3–6 weeks | ||
| 31AN3-31A | $2.07 | Special order – 3–6 weeks | ||
| 32AN3-32A | $2.74 | Special order – 3–6 weeks | ||
| 33AN3-33A | $1.98 | Special order – 3–6 weeks | ||
| 34AN3-34A | $2.07 | Special order – 3–6 weeks | ||
| 35AN3-35A | $3.54 | Special order – 3–6 weeks | ||
| 36AN3-36A | $2.25 | Special order – 3–6 weeks | ||
| 37AN3-37A | $4.76 | Special order – 3–6 weeks | ||
| 40AN3-40A | $4.32 | Special order – 3–6 weeks | ||
| 41AN3-41A | $5.75 | Special order – 3–6 weeks | ||
| 42AN3-42A | $2.71 | Special order – 3–6 weeks | ||
| 43AN3-43A | $7.71 | Special order – 3–6 weeks | ||
| 44AN3-44A | $3.86 | Special order – 3–6 weeks | ||
| 45AN3-45A | $8.17 | Special order – 3–6 weeks | ||
| 46AN3-46A | $10.24 | Special order – 3–6 weeks | ||
| 47AN3-47A | $4.16 | Special order – 3–6 weeks | ||
| 50AN3-50A | $22.70 | Special order – 3–6 weeks | ||
| 51AN3-51A | $25.07 | Special order – 3–6 weeks | ||
| 52AN3-52A | $24.15 | Special order – 3–6 weeks | ||
| 54AN3-54A | $51.75 | Special order – 3–6 weeks | ||
| 55AN3-55A | $28.75 | Special order – 3–6 weeks | ||
| 56AN3-56A | $27.03 | Special order – 3–6 weeks | ||
| 57AN3-57A | $33.35 | Special order – 3–6 weeks | ||
| 60AN3-60A | $37.95 | Special order – 3–6 weeks | ||
| 62AN3-62A | $47.96 | Special order – 3–6 weeks |
