AvMap Ultra EFIS

View more products from AvMap SKU: UX0EFS50AM

$2,299.00

GST includedShipping Info


Special Order
2-3 Weeks Delivery

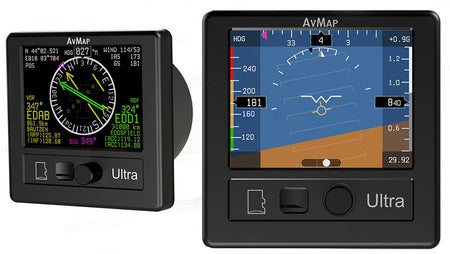

AvMap Ultra is a stand alone EFIS with a 3.5in ultra bright LCD display. The unit is compact (only 63.3 mm /2.49in of installing depth) and ultra light: only 230 g (8.1 Oz)


Ultra powerful, packed with everything you need

  • 3.5in ultra bright LCD
  • GPS
  • Solid state 3-axis gyro
  • 3-axis accelerometer
  • 3-axis magnetic field sensor
  • Pitot and Static air data sensors
  • UAV motion processor and sensor fusion software
  • Preloaded with Jeppesen database (APT, VOR, NDB)

Your Navigation back-up!

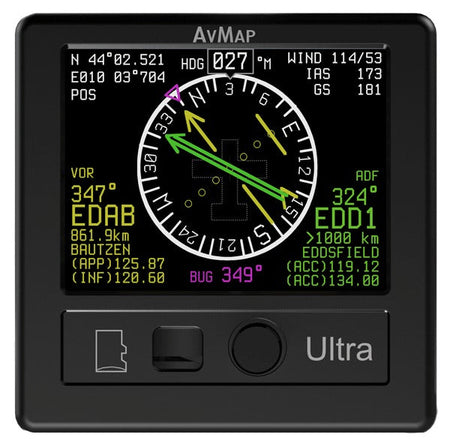

The AvMap Ultra also provides navigation back-up: in the HSI screen you can select from the preloaded Jeppesen Database an Airport, a VOR station or NDB transmitter as your navigation point.

The Ultra EFIS contains an internal world magnetic model that allows it to calculate the local magnetic deviation and dip. The Ultra EFIS can calculate current position and ground speed even in the absence of GPS.


Specifications


Hardware

Dimensions 95 x 95 x 78 mm

Weight 230 g (8.1 oz)

Diameter 77.5 mm ; Installing diameter: 79.5 mm

Display 3.5; 320 x 240 pixels, brightness 500 cd/m2

Operational Temperature -20 C to + 70 C / -4 F to +158 F

solid state 3-axis gyros

3-axis accelerometers

3-axis magnetometers

Acceleration range (3 axis): +/- 8 g

Rotation Range +/- 1600 deg/s

Air data sensors range 10 to 215 kts, -1000 to 40000 ft

UAV Navigation Motion processor

Micro SD slot

1.5 m free wires power supply cable (10/35 VDC)

3 serial ports RS-232

Consumption @ 12 V DC: 100 mA nominal



Software

Advanced data fusion capability

Airspeed and Altitude from pitot-static system

Artificial Horizon with Attitude (roll, pitch and heading) and side slip

Wind indicator

Clear HSI with Course Deviation Indicator (CDI)

Altimeter reference, Heading reference, Aircraft specific V-speed reference values

Vertical Speed Indicator

Automatic Direction Finder with GPS

Preloaded with Jeppesen Database (APT, VOR, NDB) for navigation back-up (4 coverages available: North America, South America, Europe-Africa, Asia- Australia)

Exceptional navigation capability in case of loss of GPS signal

Magnetic Compass

G-meter




Included accessories

GPS receiver U-Blox NEO 6Q with 1.5 m) cable
