FEATURES
OVERVIEW

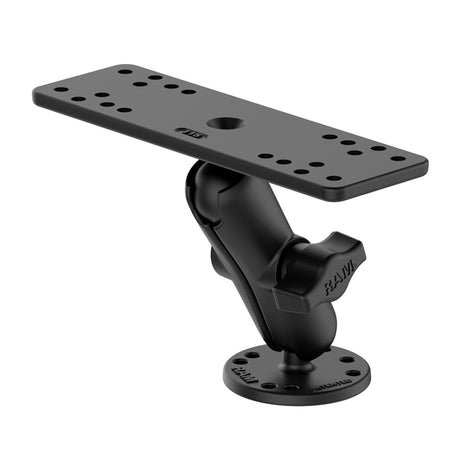

The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET TO SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

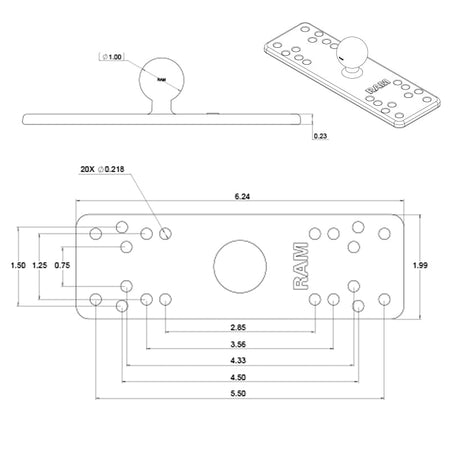

See Drawing
PLATE SIZE
Top Plate: 6.25" x 2.5"
Bottom Plate: 2.5" Diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
ADDITIONAL INFORMATION
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
COMPATIBILITY

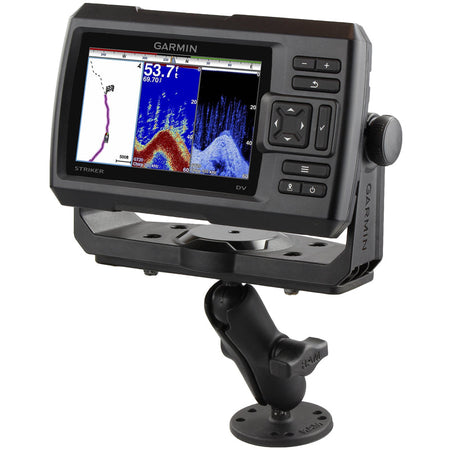

Garmin GPSMAP 162, Garmin GPSMAP 168, Garmin GPSMAP 175, Garmin GPSMAP 180, Garmin GPSMAP 180C, Garmin GPSMAP 182, Garmin GPSMAP 185, Garmin GPSMAP 188, Garmin GPSMAP 232, Garmin GPSMAP 238, Garmin Striker 5 Series, Garmin Striker Plus 5cv
- Complete flat surface, drill-down mounting solution with an overall height of 5"
- RAM Mounts ball and socket technology allows for near-infinite adjustability
- Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
OVERVIEW
The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.
PRODUCT DIMENSIONS
Overall Height: 5"
SOCKET TO SOCKET LENGTH
3"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
PLATE SIZE
Top Plate: 6.25" x 2.5"
Bottom Plate: 2.5" Diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
ADDITIONAL INFORMATION
This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
COMPATIBILITY
Garmin GPSMAP 162, Garmin GPSMAP 168, Garmin GPSMAP 175, Garmin GPSMAP 180, Garmin GPSMAP 180C, Garmin GPSMAP 182, Garmin GPSMAP 185, Garmin GPSMAP 188, Garmin GPSMAP 232, Garmin GPSMAP 238, Garmin Striker 5 Series, Garmin Striker Plus 5cv
Part No:RAM-B-111U
