- SKU: RAM-B-202AU
- Vendor: RAM Mount
RAM Round Base With 1" Ball and 1/4"-20 Threaded Stud
Regular price
$30.95
Regular price
Sale price
$30.95
Unit price
per
GST included.
Spend $500.00 to qualify for Free Shipping
Free Shipping!
Order by 3pm Mon–Fri and your order ships today
Product description
OVERVIEW

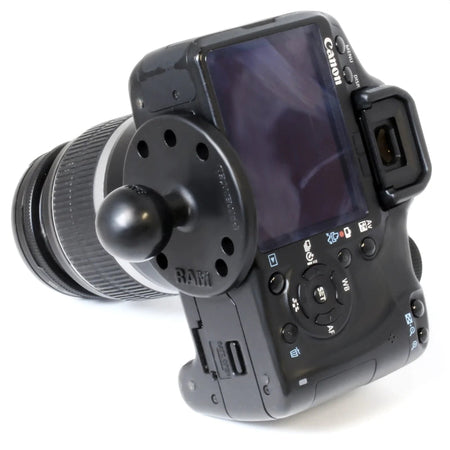

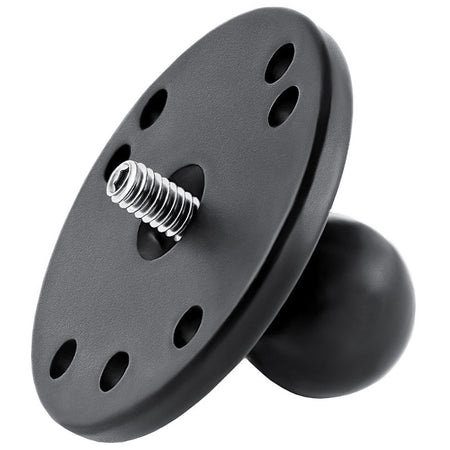

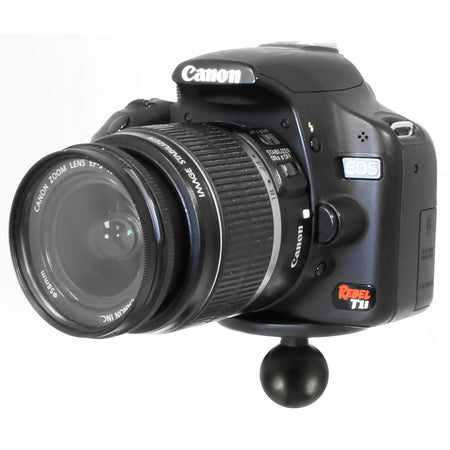

The RAM-B-202AU, universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
THREAD PITCH
1/4"-20 x .25"
PLATE SIZE
2.5" Diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
The RAM-B-202AU, universal camera and camcorder base, consists of a 1" diameter rubber ball, connected to a 2.5" diameter round plate with 1/4"-20 camera thread. The round plate provides extra support and stability for cameras that rest on top of it. The male 1/4"-20 threaded steel stud will connect to any standard female thread found on camcorders and digital cameras.
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
THREAD PITCH
1/4"-20 x .25"
PLATE SIZE
2.5" Diameter
BALL SIZE
B Size (1")
WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
