RAM Round Base With C Size 1.5" Ball

FEATURES

• 2.5" round plate connects to RAM device holders containing the universal AMPS hole pattern

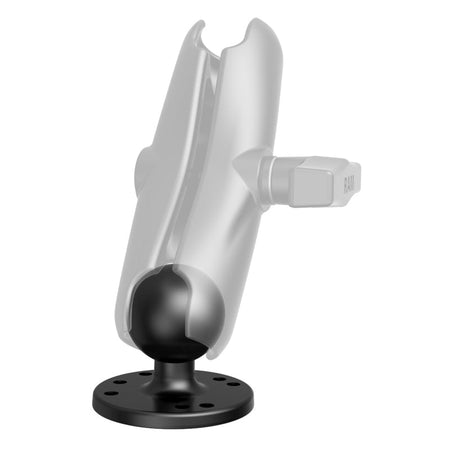

• Included C size 1.5" RAM rubber ball allows for connection to any C size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

OVERVIEW

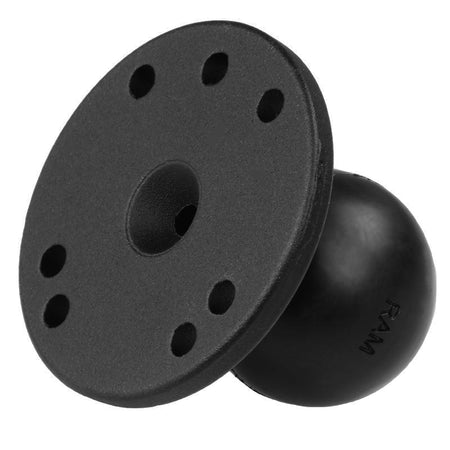

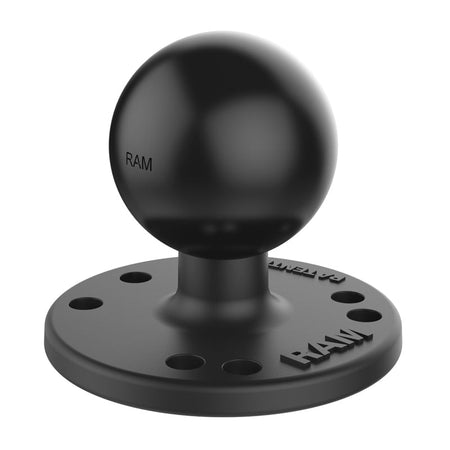

The RAM-202U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter

PLATE SIZE
2.5" Diameter

BALL SIZE
C Size (1.5")

WEIGHT CAPACITY
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
