RAM EZ-Roll'r Holder for iPad Air 3 and Pro 10.5 with Mounting Options

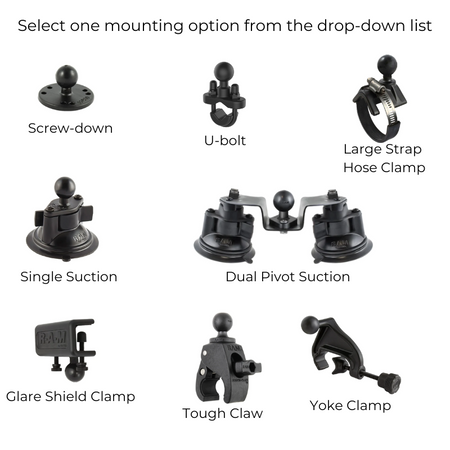

Mounting Options

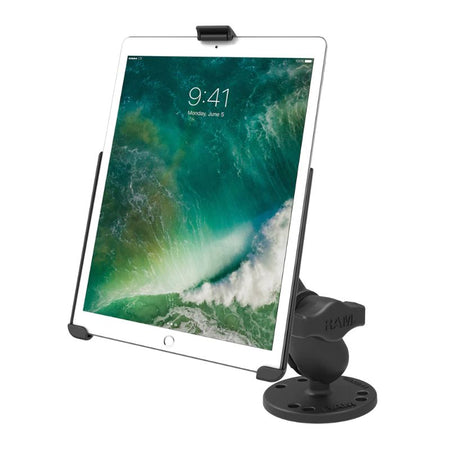

Screw-Down

• The RAM-B-202U consists of a 1" B size rubber ball connected to a 2.5" diameter round plate. This mounting component includes pre-drilled holes using the universal AMPS hole pattern.

• HOLE PATTERN: 4-Hole AMPS: 1.181" x 1.496", 3-Hole 120-Degree: 1.812" Diameter
• PLATE SIZE: 2.5" Diameter

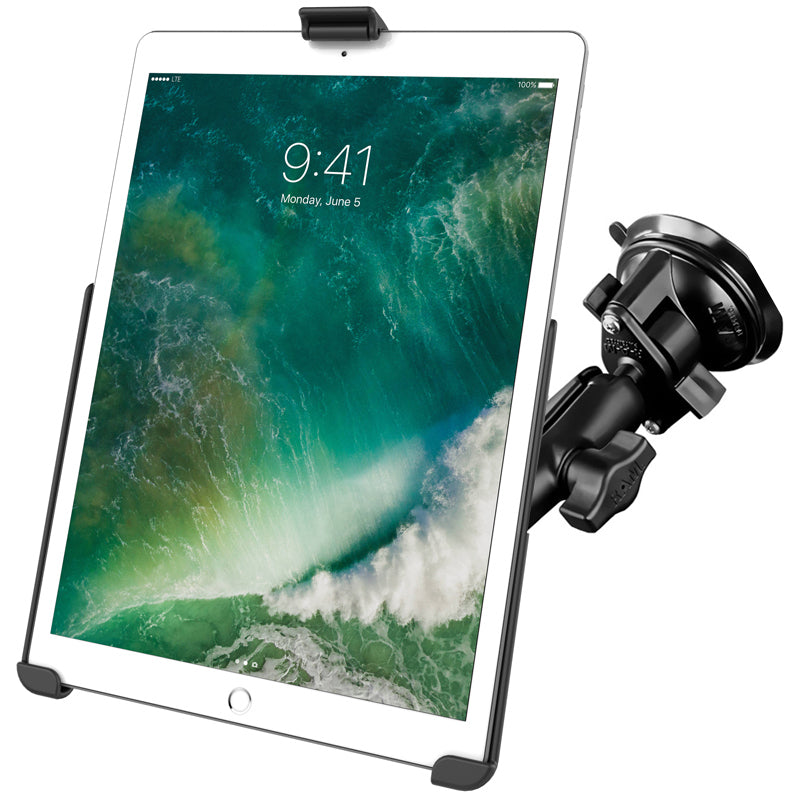

Suction Cup

• The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM Twist-Lock suction cup connected to a RAM-B-238U diamond base with a 1" B size rubber ball. The RAM Twist-Lock suction cup base is a fan favourite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface
• SUCTION SIZE: 3.3" Diameter

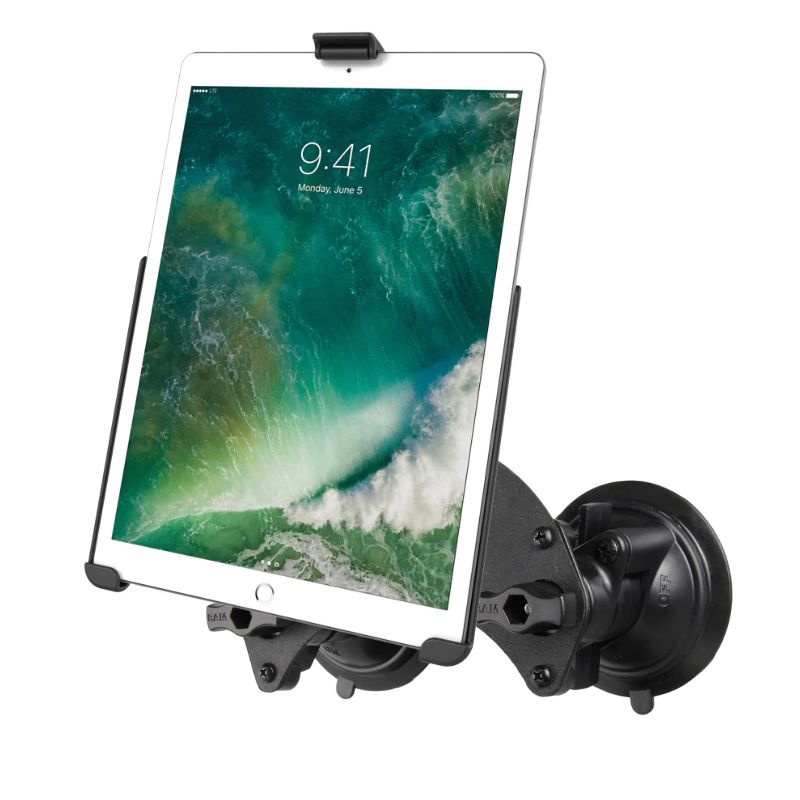

Dual Pivot Suction Cups

• With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Whether you are mounting to a curved surface on a vehicle, or a curved windshield, this product is the ideal solution for secure suction cup mounting.
• SUCTION SIZE: (2) 3.3" Diameter Bases, Total Width 7.95"

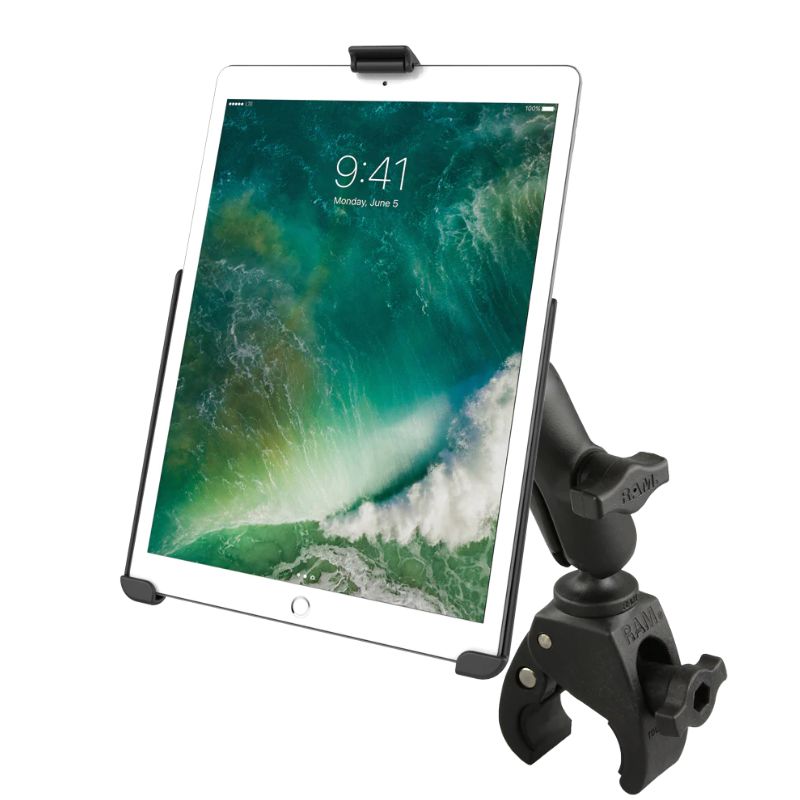

Tough Claw

• The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw can quickly be clamped on rails ranging from .625" to 1.14" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications.
• CLAMP RANGE: .625" - 1.14" diameter

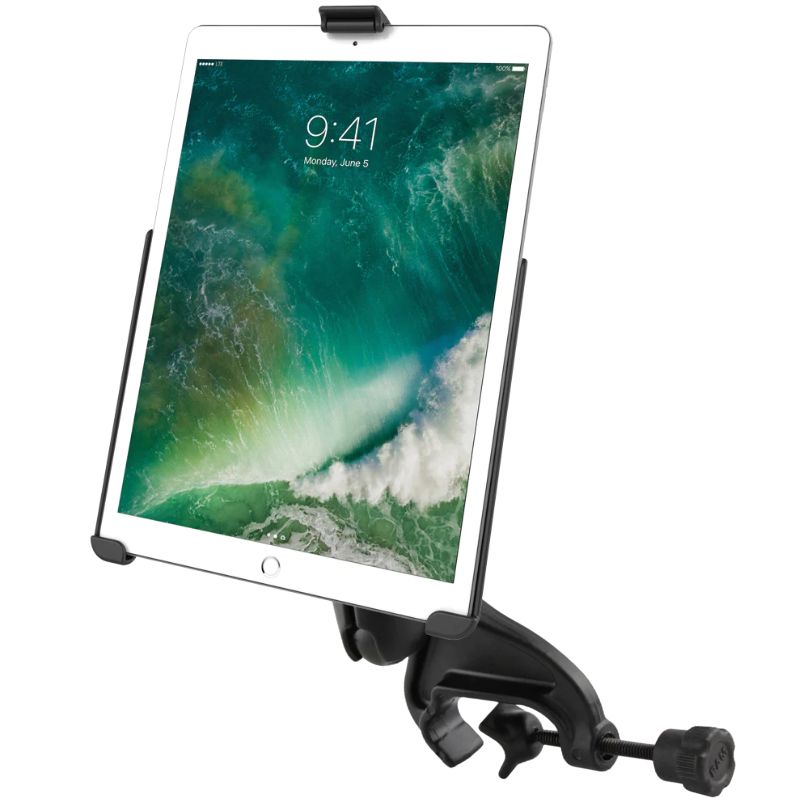

Yoke Clamp

• The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.
• CLAMP RANGE: .625" - 1.25"

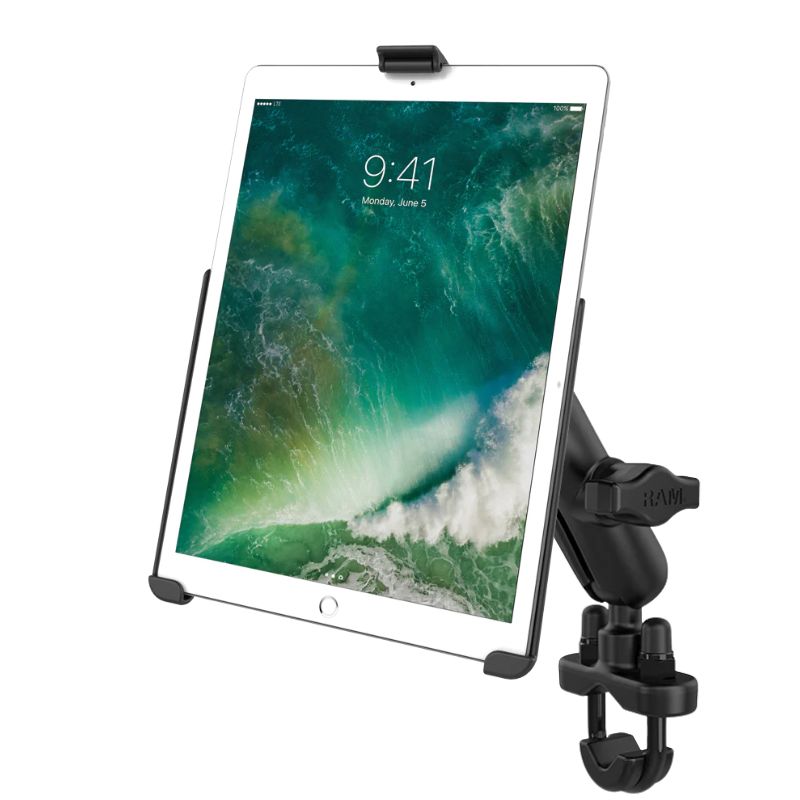

Handlebar U-Bolt

• Ideal for motorcycle handlebars, the RAM-B-231ZU consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5".

• HARDWARE INCLUDED
• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) 1/4"-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer
• CLAMP RANGE: .5" - 1.25" diameter

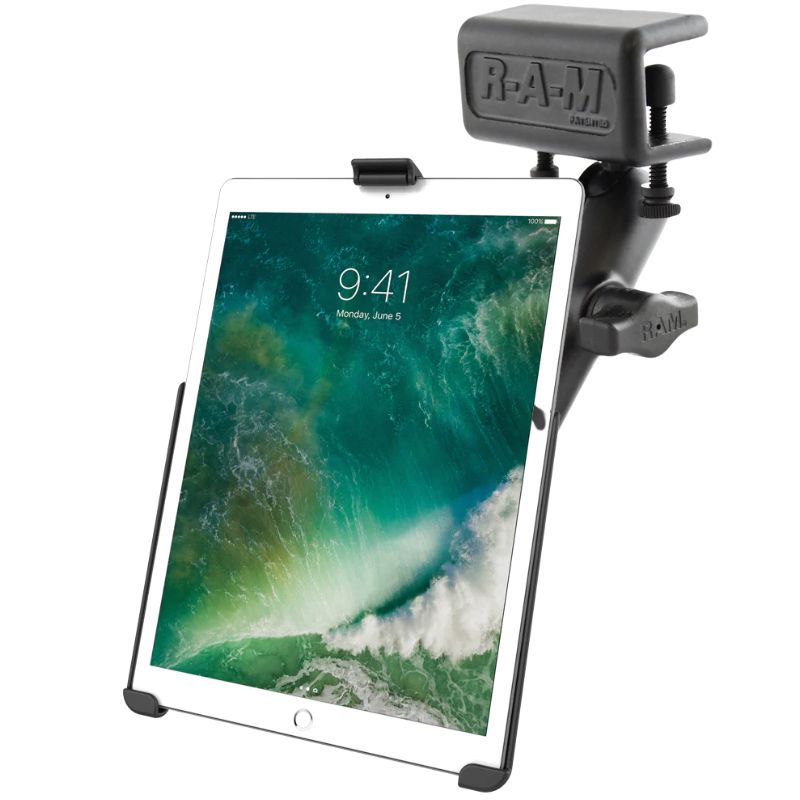

Glare Shield Clamp

• The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface.

• HARDWARE INCLUDED
• (2) 1/4"-20 x 1.25" Composite Thumb Screws
• (2) Rubber Caps
• (1) 1.93" x 3.06" Rubber Adhesive Pad

• CLAMP RANGE: .625" max

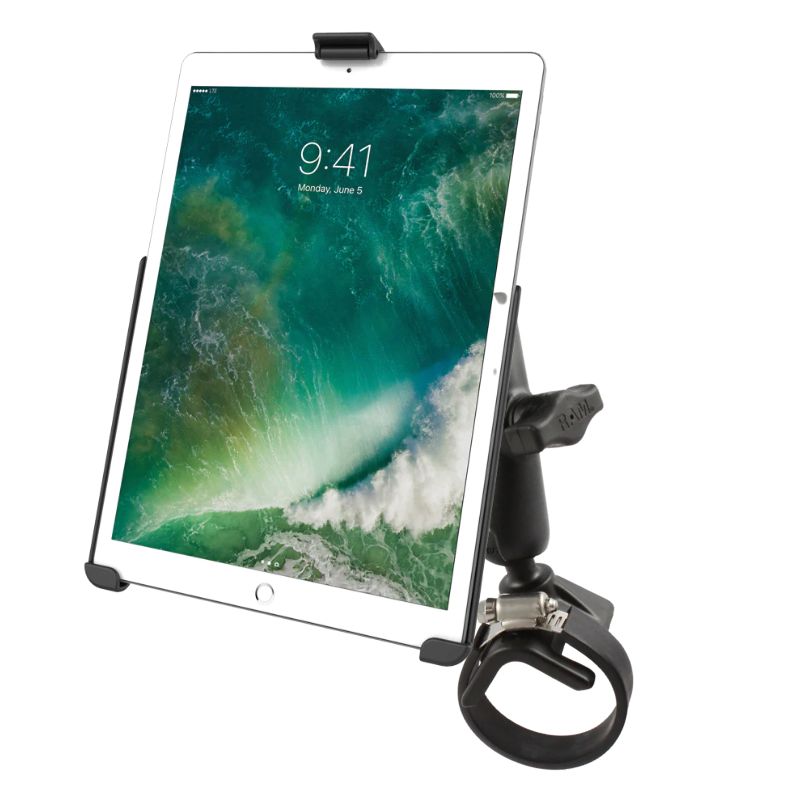

Large Strap Hose Clamp Base for Beechcraft Bonanza Aircraft

• An alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”. Accommodates rails from 2" to a maximum of 3" in diameter.

• HARDWARE INCLUDED
• (1) #40 Worm Drive Strap Clamp
• (1) 6" Rubber Strip

• CLAMP RANGE: 2" - 3" diameter
