RAM Strap Hose Clamp Base With 1" Ball

FEATURES

• Saddle-shaped clamp mount ideal for rails ranging from 1" to 2.1" in diameter
• Included B size 1" RAM rubber ball allows for connection to any B size RAM double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

OVERVIEW

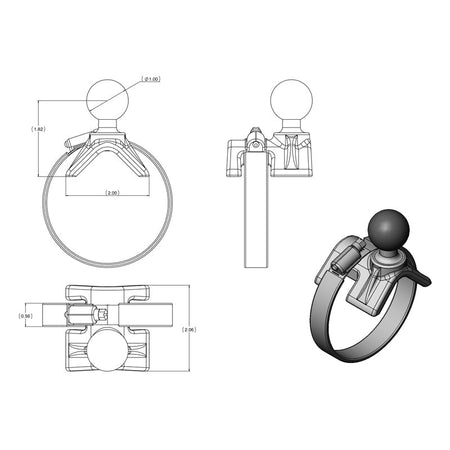

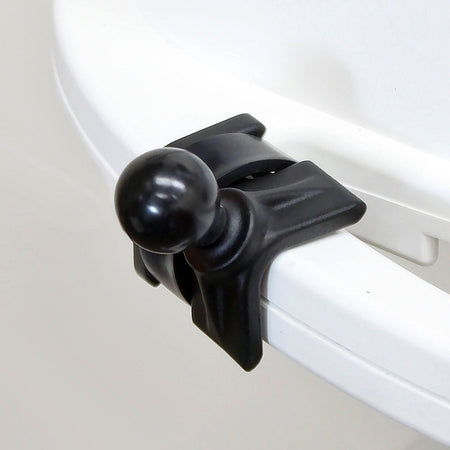

The RAM-B-108BU consists of a B size 1" rubber ball connected at a right angle to a V-shaped base, and accommodates rails from 1" to 2.1" in diameter. To mount the RAM-B-108BU base, place the saddle-shaped plate on the rail and then wrap the metal clamp strap around the rail and plate. Tighten the knob on the metal strap with a screwdriver until it has a firm hold on the rail. The RAM-B-108BU is an alternative mounting base for Beechcraft airplanes with a “throw over yoke."

HARDWARE INCLUDED

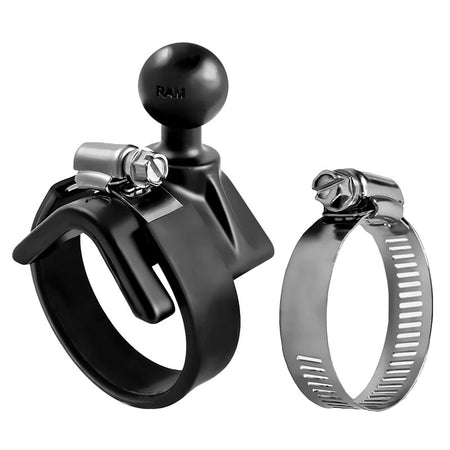

(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip

CLAMP RANGE
1" - 2.1" diameter

BALL SIZE
B Size (1")

WEIGHT CAPACITY
Standard Use: 2 lbs
Heavy-Duty Use: 1 lb
