RAM X-Grip for Small 7-8" Tablets with Mounting Options

SKU: RAM-B-138-UN8U

$158.85

GST includedShipping Info


Current Stock
Order by 3pm and your order ships today! (Mon-Fri)
With Screw-Down Base $158.85 - We have 4 In Stock
With Single Suction Cup $182.85 - We have 4 In Stock
With Dual Pivot Suction Cup $268.85 - We have 3 In Stock
With Tough-Claw Clamp $216.85 - We have 2 In Stock
With Yoke Clamp $202.85 - We have 3 In Stock
With Handlebar U-Bolt $175.85 - We have 2 In Stock
With Glare Shield Clamp Base $202.85 - We have 2 In Stock
With Large Strap Hose Clamp $182.85 - We have 1 In Stock
X-grip Without Mount $98.95 - We have 4 In Stock

Low Stock

If your option is out of stock don't worry more stock is on the way, select your option and enter your email address in the box and we will notify you the minute the shipment arrives
Payment Methods We Accept




Includes

  • 1x iPad holder (X-grip)
  • 1x arm (3" length)  and 1x choice of mount (optional)

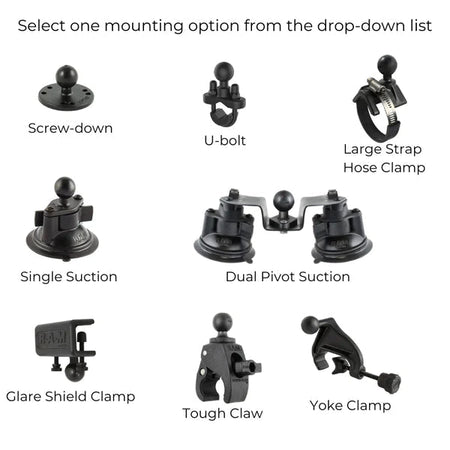

Choose from one of 9 mounting options:

  • Cradle without mount
  • Cradle with RAM Screw down mount
  • Cradle with RAM Single Suction mount
  • Cradle with RAM Tough-Claw yoke mount
  • Cradle with RAM Yoke Clamp
  • Cradle with RAM Handlebar U-Bolt
  • Cradle with RAM Glare Shield Clamp for aircraft glare shield or car window ledge.
  • Cradle with RAM Large Strap Hose Clamp for Beechcraft Bonanza aircraft
  • Cradle with RAM Dual Pivot Suction mount

Compatibility

Clever design that allows any 7-8" tablet (with or without a case) to be mounted securely.

Apple: iPad Mini (all models)

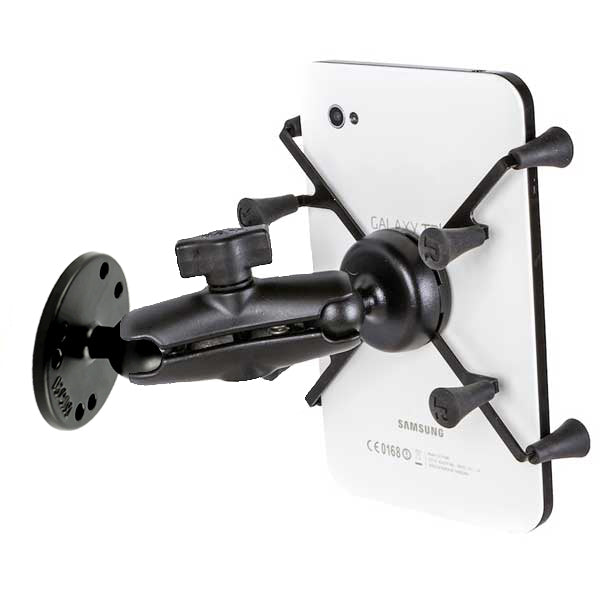

Samsung Galaxy Tab: 2 7.0, 3 7.0, 3 8.0, 3 Lite 7.0, 4 7.0, 4 8.0, 7.7, A 7.0, A 8.0, A8.4, Active2, E 7.0, E 8.0, Pro 8.4, S 8.4, S2 8.0

Will also fit any 7-8" tablet.  Measurement is taken diagonally from corner to corner.

Contact our team if you would like assistance checking the compatibility of your device.

Features:

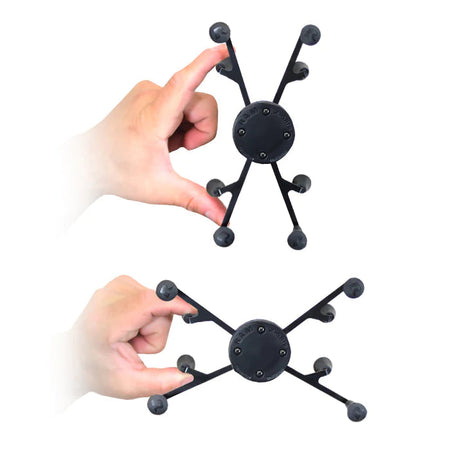

• Spring-loaded x-grip allows easy mounting and removal of your tablet without obstructing your view
• With tablet shapes constantly changing, invest in an adjustable universal tablet mount that's future-proofed

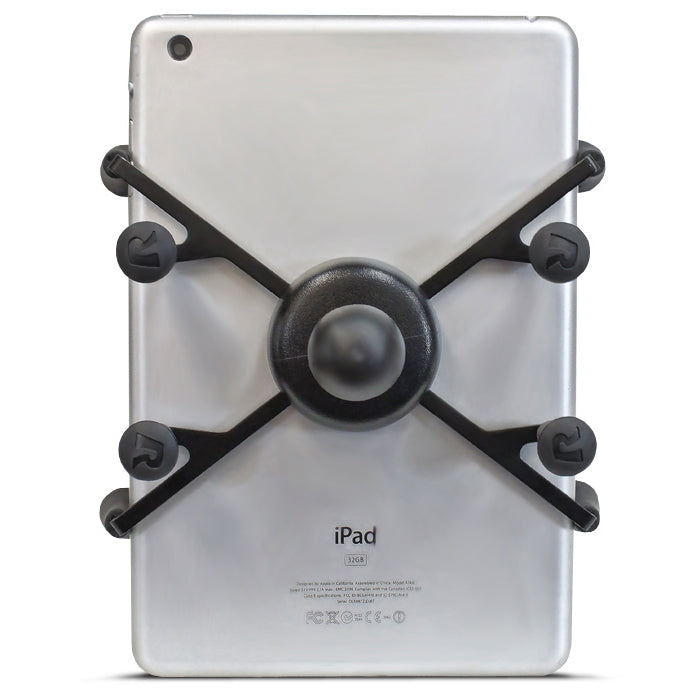

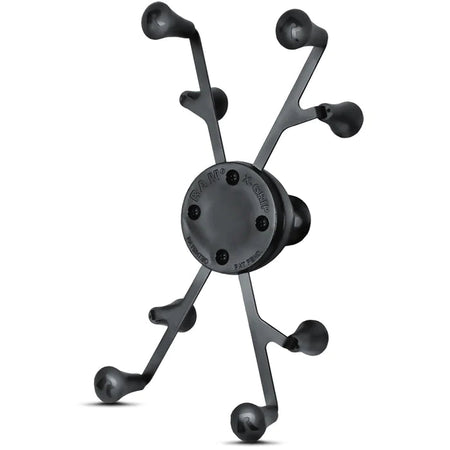

The RAM-HOL-UN8B consists of a spring loaded cradle and 1" rubber ball connected to the back of the base. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The RAM-HOL-UN8B expands and contracts for perfect fit of most 7"-8" tablets. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

HARDWARE INCLUDED

(1) Optional Tether
(1) Glue Tube for Rubber Caps

HOLDER DIMENSIONS

Width Range: 2.5" - 5.75"
Depth Range: .875" max

BALL SIZE

B Size (1")



Mount Specifications

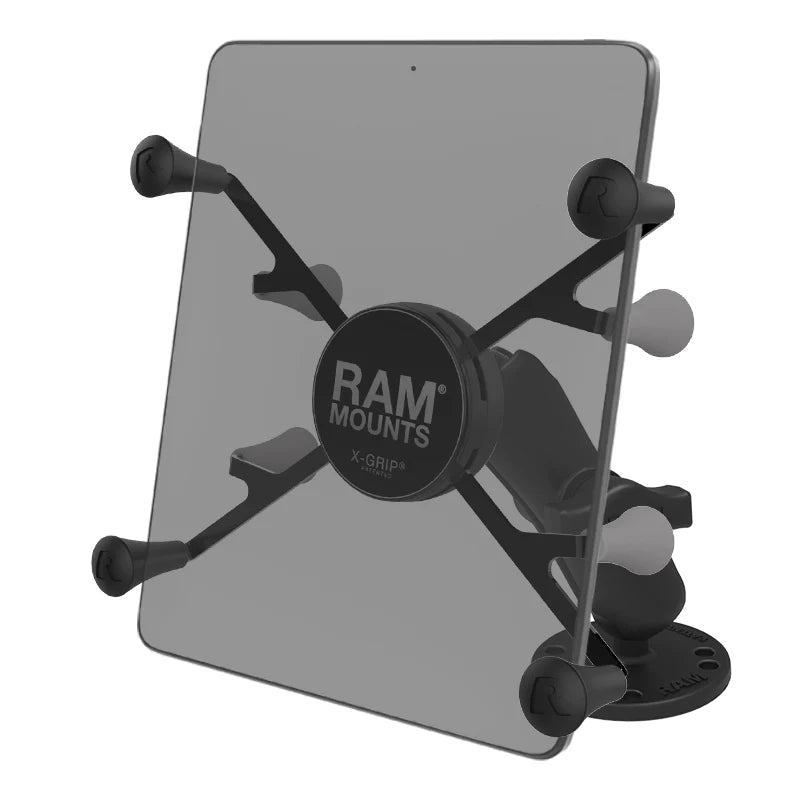

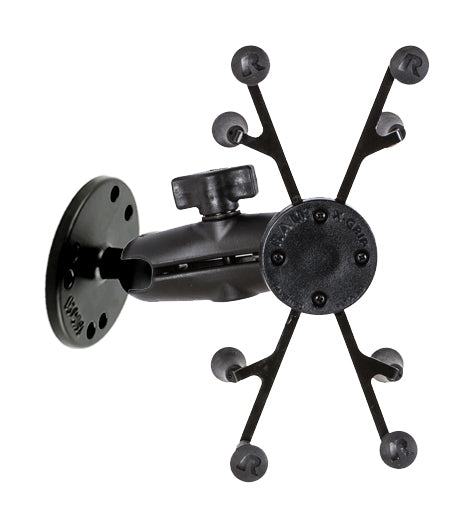

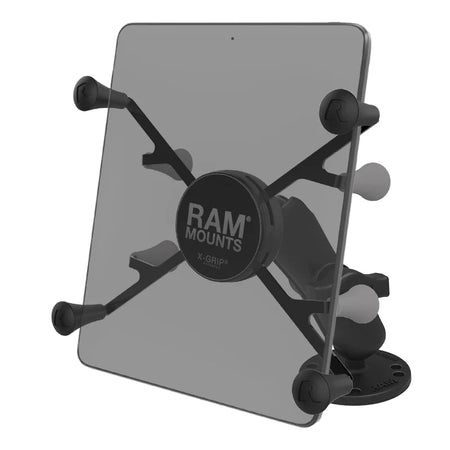

Screw Mount:

  • Plate size 2.5" diameter, hole pattern 4-Hole AMPS: 1.181" x 1.496"
  • 3-Hole 120-Degree: 1.812" Diameter. Weight capacity - Standard use: 2lbs, Heavy-duty use 2lbs. Marine grade aluminium.

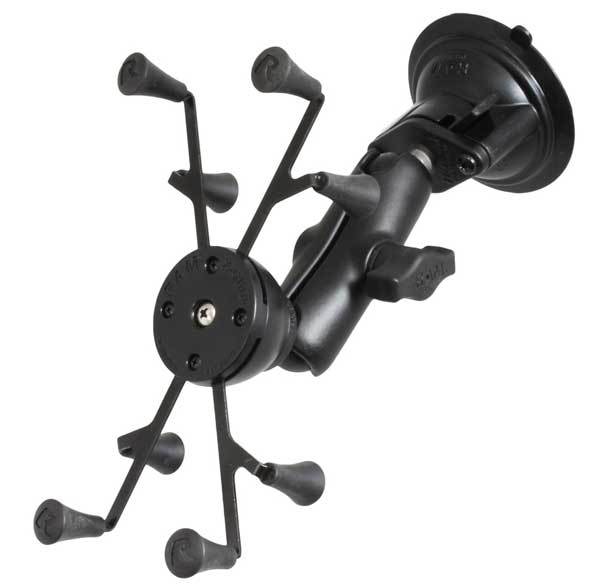

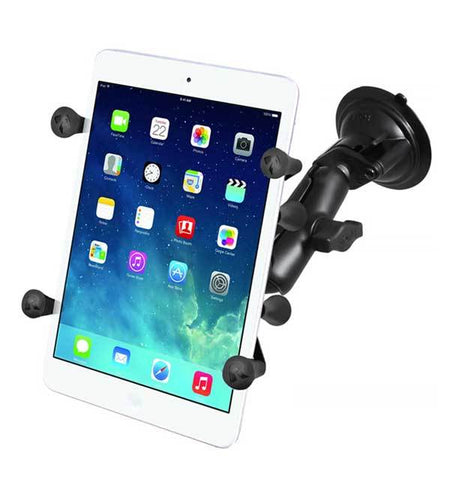

Suction Mount

  • The RAM-B-224-1U suction cup base consists of a 3.3" diameter RAM Twist-Lock suction cup connected to a RAM-B-238U diamond base with a 1" B size rubber ball. The RAM Twist-Lock suction cup base is a fan favorite for use on vehicle windshields, and provides an extra strong hold on any smooth, nonporous surface. 3.3" diameter.

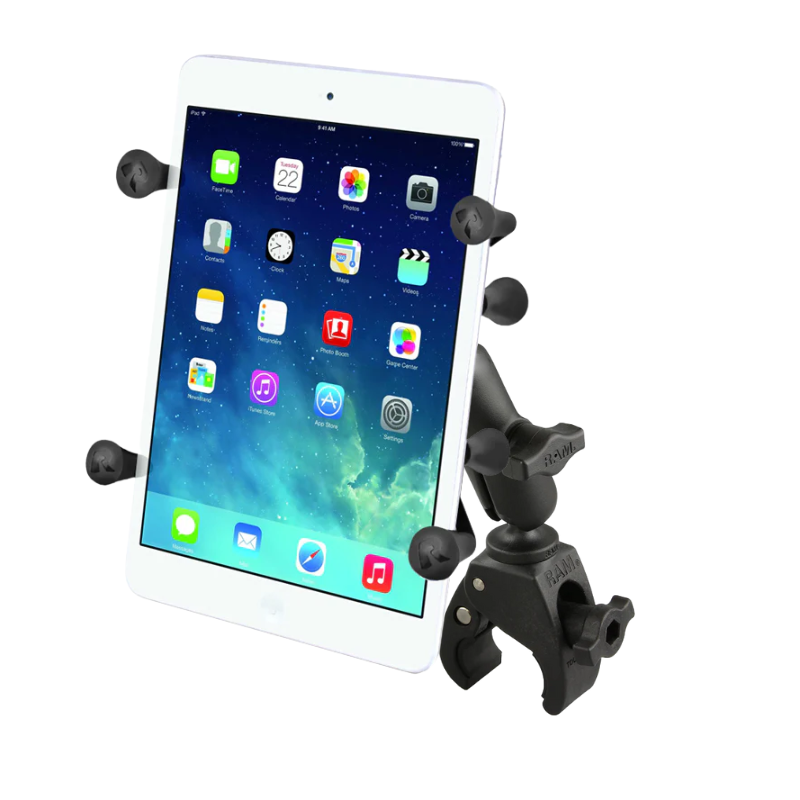

Tough Claw

  • Clamp Range: 0.625" - 1.14" diameter
  • The RAM Tough-Claw is the perfect mounting base for toolless installation and removal on round, square, and odd-shaped rails and bars. The small version of the RAM Tough-Claw can quickly be clamped on rails ranging from .625" to 1.14" in outer diameter and is ideal for mounting phones, tablets, action cameras, rod holders, and much more in a wide variety of applications. Perfectly suited for mounting on the yoke of an aircraft, handlebars of bicycles and motorcycles, or even on kayak rails and roll bars. Overall Height: 4.24", Overall Width: 1.18"

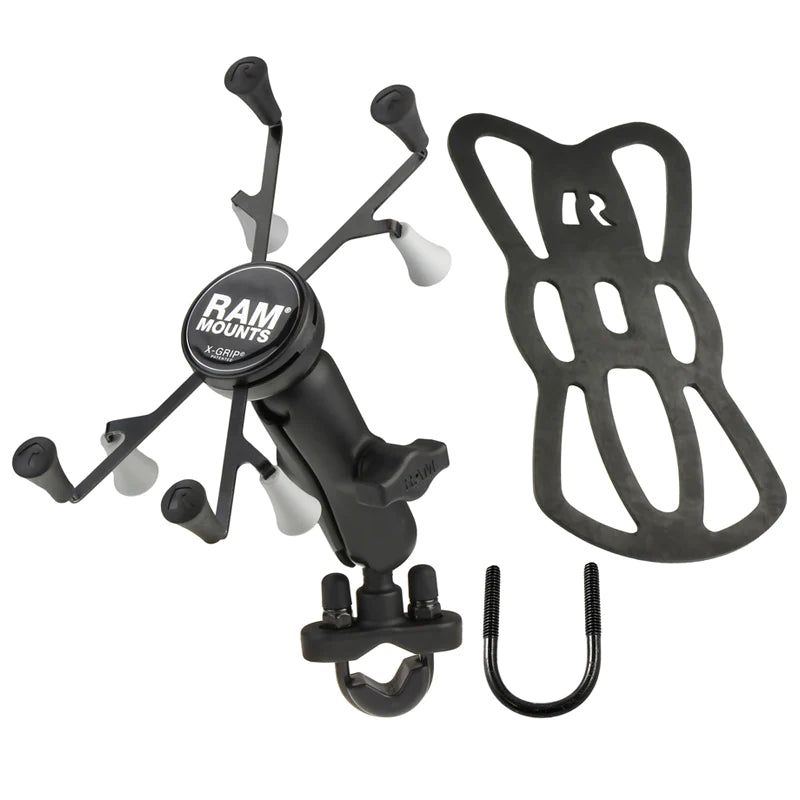

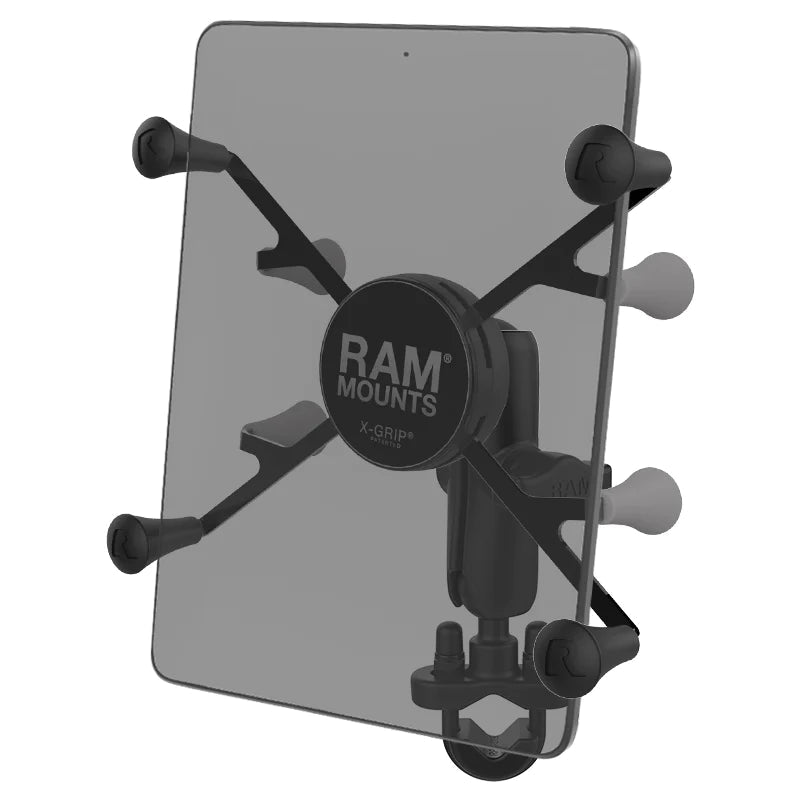

Handlebar U-Bolt

  • Clamp Range:  0.5" - 1.25" diameter
  • Ideal for motorcycle handlebars, consists of a 1" B size rubber ball attached to a zinc-coated metal U-bolt base. Designed to sit at right angles to the mounting rail, the U-bolt base accommodates rails from .5" to 1.25" in diameter. Included are black cover caps to be placed over the exposed ends of the U-bolt as well as a composite adapter that can narrow the rail to a minimum width of .5".

 Hardware included:
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(2) 1/4"-20 Nylock Nuts
(2) Rubber Caps
(1) U-Bolt Spacer

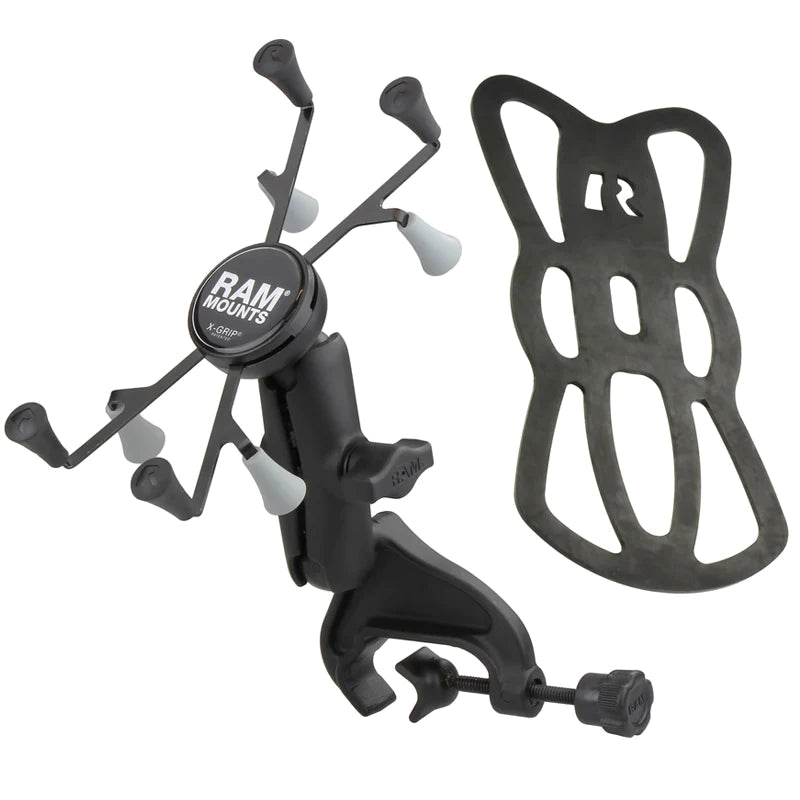

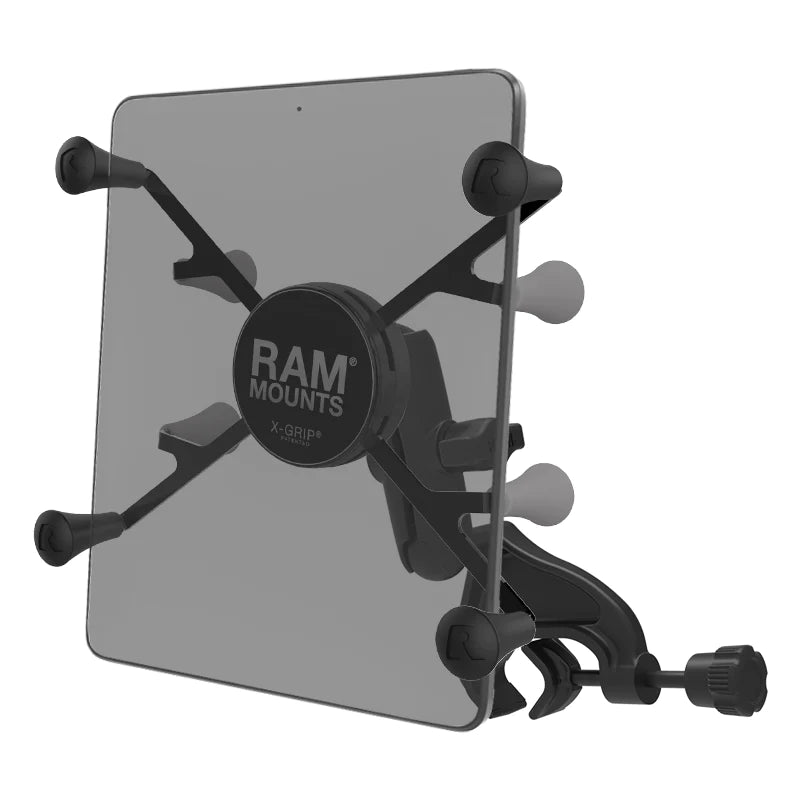

 Yoke Clamp:

Perfect for Cessna and Piper aircraft.

  • Clamp Range 0.625" - 1.25"
  • The yoke clamp base will fit rails in diameter from 0.625" to a maximum of 1.25". The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.

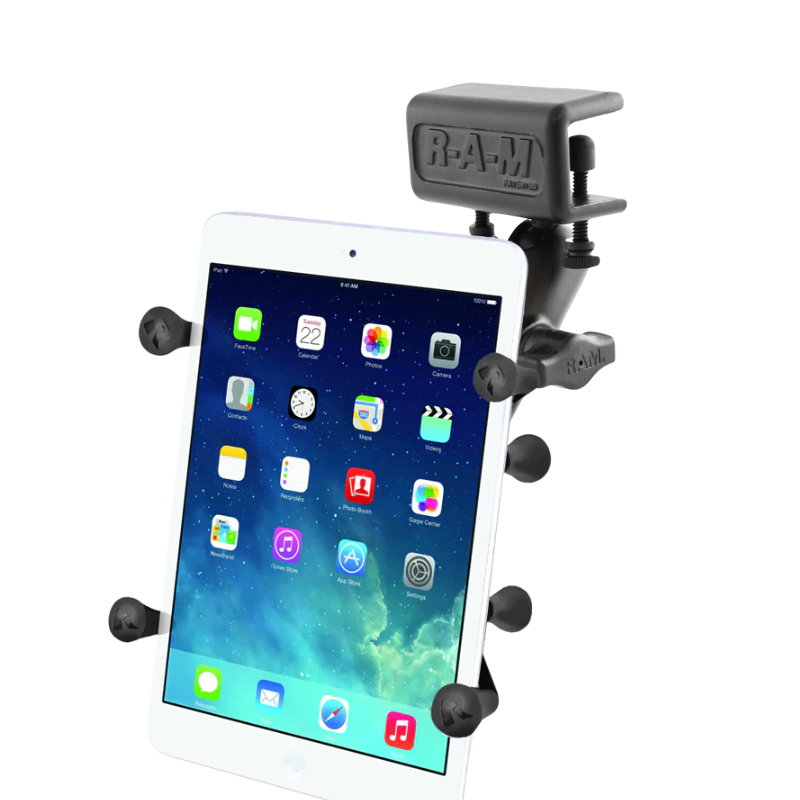

Glare Shield Clamp

The RAM-B-259U is designed to mount to the lip edge of a flat surface up to 5/8" thick. Popular mounting edges include a car side window edge lip or glare shield on an airplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface. A RAM 1" diameter rubber ball is connected to the base allowing you to connect a RAM 1" diameter arm socket and connection plates to create the perfect mount for your application.

  • Clamp range 0.625" max
  • Ball size: B Size (1")
  • Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
  •

    Hardware Included

    (2) 1/4"-20 x 1.25" Composite Thumb Screws
    (2) Rubber Caps
    (1) 1.93" x 3.06" Rubber Adhesive Pad

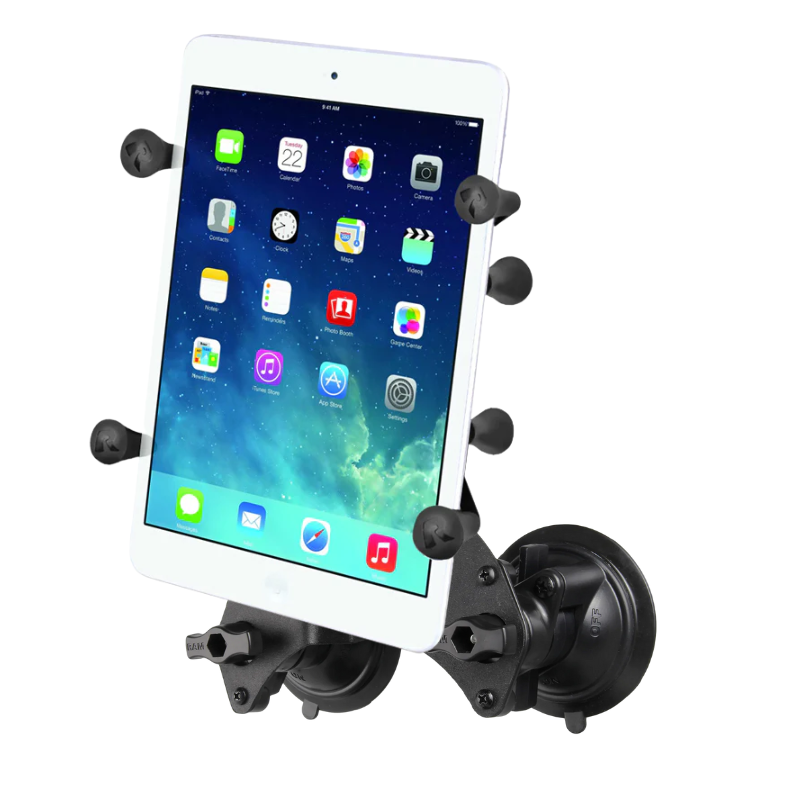

    Dual Pivot Suction Cup

    RAM suction cups are regarded as one of the most impressive suction cups in the world. Their incredible holding power is surprising when considering how most suction cups function. When two suction cups are used together the performance is amazing. The RAM® Dual Articulating Suction Cup is an amazing innovation in suction cup mounting. With the ability to independently articulate each suction cup, this mounting base can be used in a variety of applications such as curved windows and surfaces. Whether you are mounting to a curved surface on a vehicle, or a curved windshield, this product is the ideal solution for secure suction cup mounting.
    • Suction Size:  (2) 3.3" Diameter Bases, Total Width 7.95"
    • Weight Capacity: Standard Use 2 lbs, Heavy-Duty Use: 1 lb

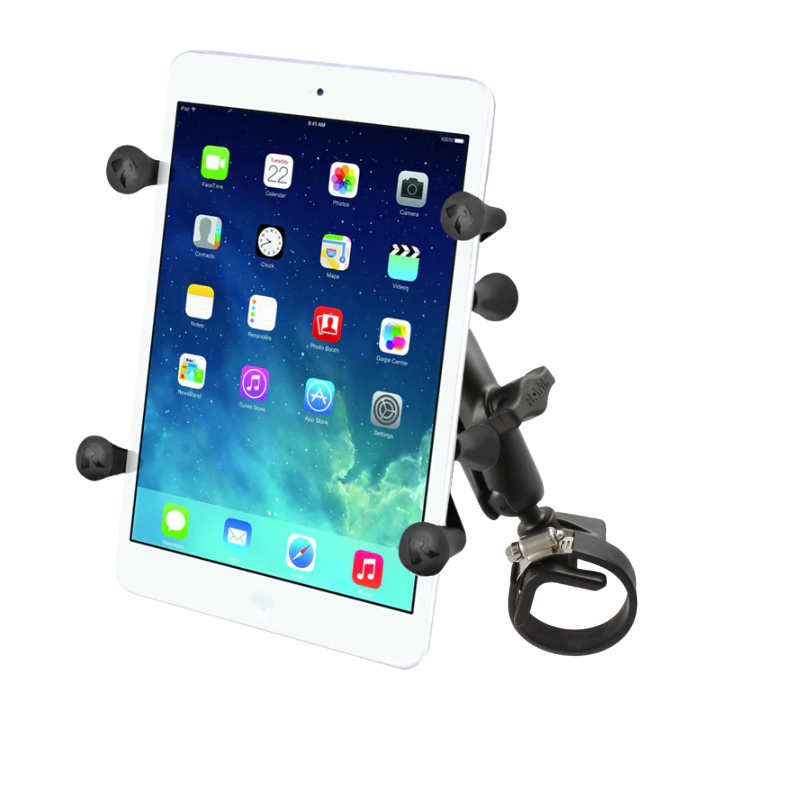

    Large Strap Hose Clamp Base for Beechcraft Bonanza Aircraft

    The RAM-B-108B-STRAP40U accommodates rails from 2" to a maximum of 3" in diameter. To mount the RAM-B-108B-STRAP40U base, place the saddle shaped plate on the rail then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screwdriver until the strap has a firm hold on the rail. The RAM-B-108B-STRAP40U is an alternative mounting base for aircraft such as the Bonanza or Beech with a “throw over yoke”.
    • Hardware included: (1) #40 Worm Drive Strap Clamp, (1) 6" Rubber Strip
    • Clamp Range: 2" - 3" diameter
    • Weight Capacity: Standard Use: 2 lbs, Heavy-Duty Use: 1 lb
